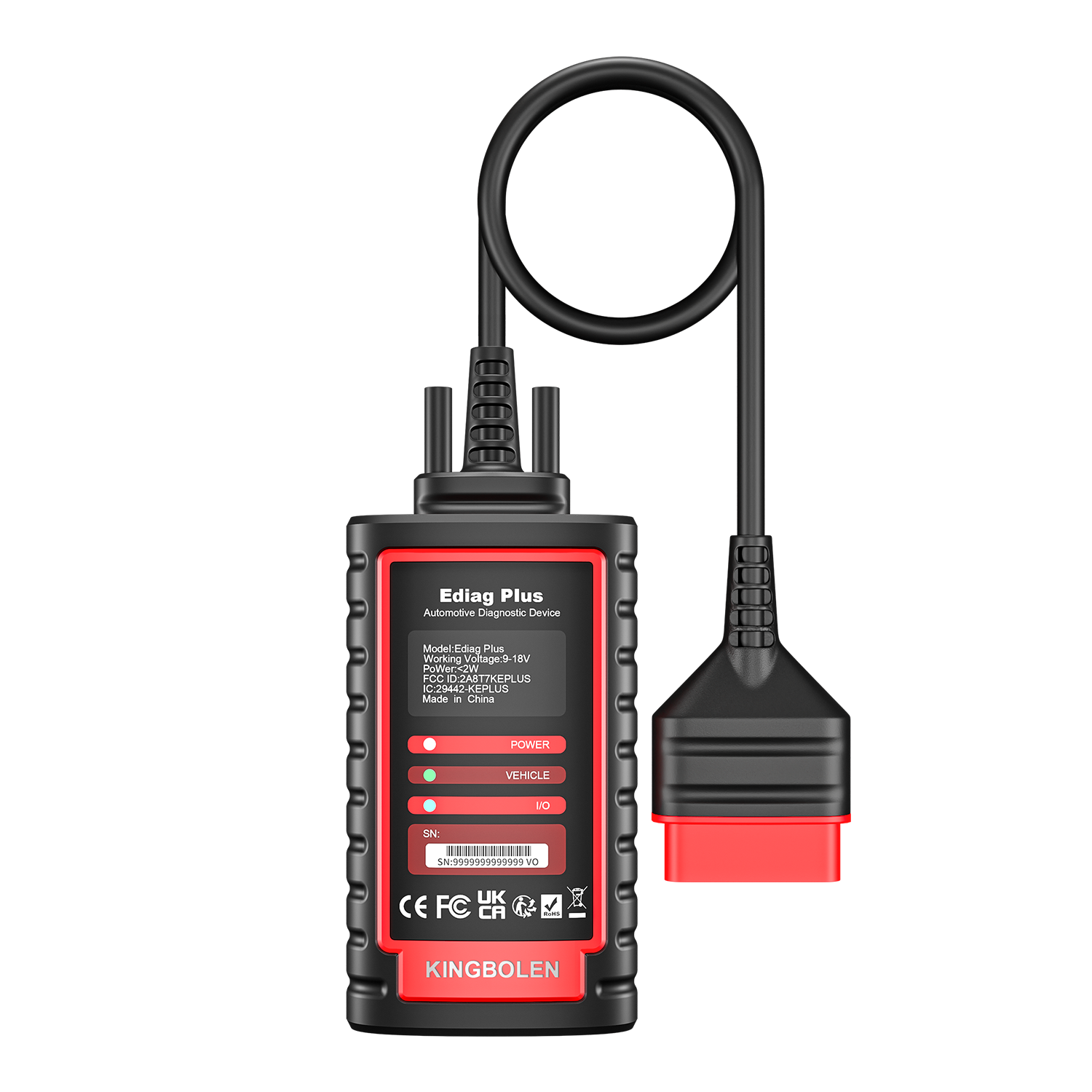

Kingbolen Ediag Plus


Add to Wishlist
Add to Wishlist


Ediag Plus supports CAN-FD protocol. It supports all 10 OBD2 functions and all system diagnostic functions. It performs testing and maintenance functions of ECM, BCM, SRS, TCM and BMS, TPMS, SAS, A/C system, etc.

Bidirectional Control & ECU Coding: Compatible with Android and iOS. Through the APP, the Ediag Plus Bidirectional scanning tool can perform special functions on some compatible cars. With bidirectional control, you can test different systems or open and close valves in the vehicle to troubleshoot internal problems.

With 15 Reset Functions: KINGBOLEN Ediag has Oil Lamp Reset/Injector Coding/ABS Bleeding/DPF Regeneration/Throttle Adaptation/Brake Reset/TPMS Reset/SAS Reset/Battery Matching/Immobilizer Matching/Gearbox Matching/AFS Matching/Suspension Matching/ETS Reset/Sunroof Initialization. More reset functions are in the car model software!

Smart Diagnostic Tool: The Auto VIN feature enables it to automatically recognize most car models. After a diagnosis is complete, the system automatically creates a full system vehicle health report, which can be shared and printed via email. The 4-in-1 data graph can better monitor vehicle performance and analyze abnormal parameters.

Supported Operating Systems: Android & IOS
Bluetooth: 5.1 Bluetooth dual mode
Diagnostic Interface: DB15
Working Voltage: 12V
Working Temperature: -10℃~50℃
Storage Environment: ﹣20-60℃
Overall Size: 120.5mm*65mm*29mm
Shell Material: ABS+PC+TPU rubber sleeve
Length of OBD Cable: 0.65 meter
