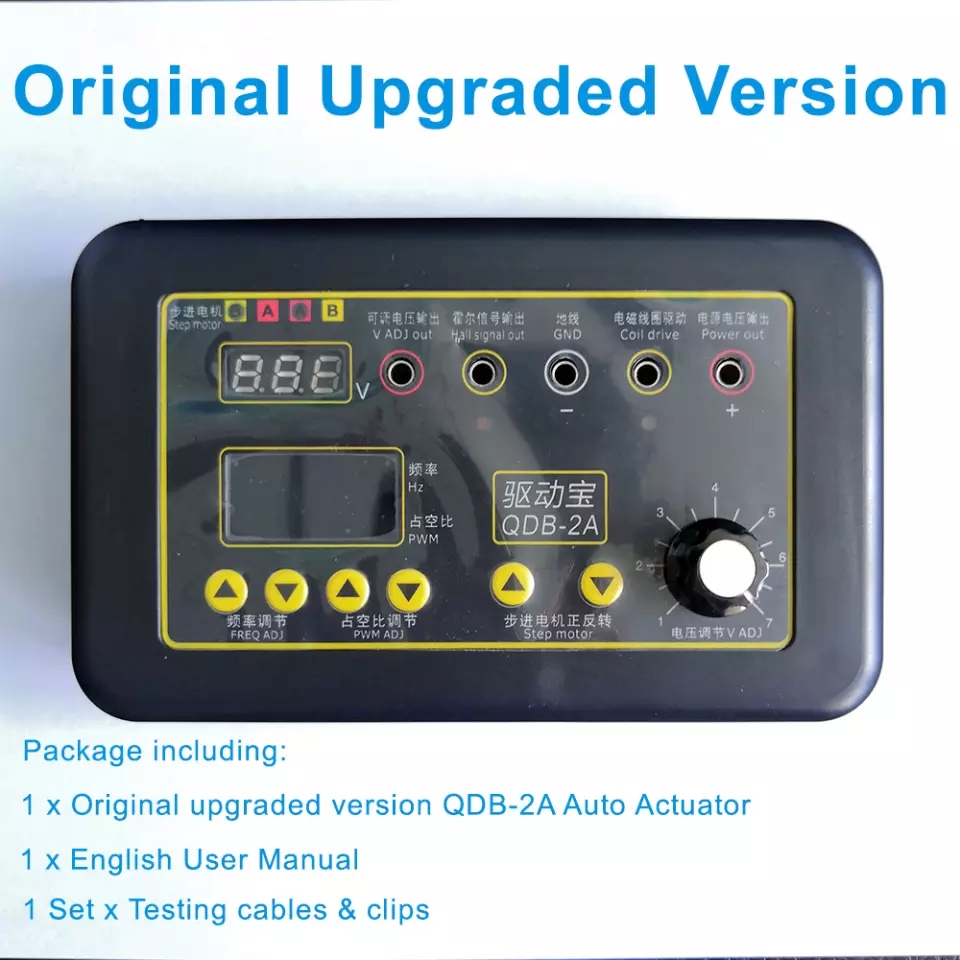

1 x Original upgraded version QDB-2A Auto Actuator
1 x English User Manual

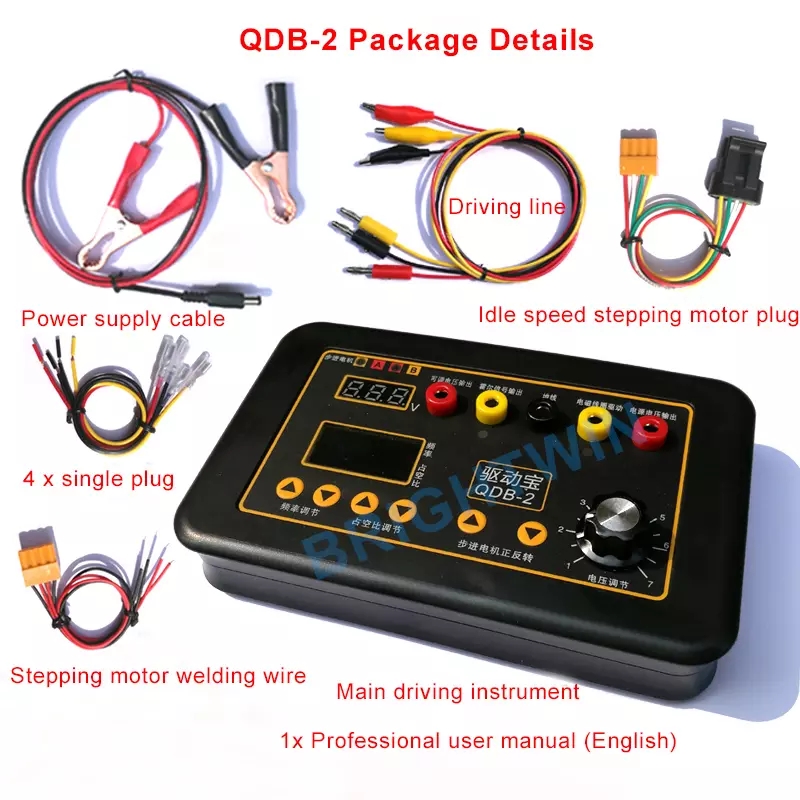

1 Set x Testing cables and clips
- Drive and test ignition coil, including independent ignition, group ignition, coil type and module type.
- Drive and test fuel injector, including 12V injector for gasoline vehicle and 12V 24V injector for diesel vehicle.
- Drive and test the solenoid valve and fuel metering valve of various duty cycle control.
- Drive and test various duty cycle controlled motors and urea pump motors
- Drive and test the idle stepper motor, instrument stepper motor, head-lamp follow up steering stepper motor, etc
- Output Hall signal with adjustable frequency, amplitude and duty cycle to simulate various duty cycle sensors, such as air conditioning pressure sensor, air flow meter, etc
- Power supply voltage range: 12V-24V, with reverse connection protection and over-current protection
- Driving current range of electromagnetic coil: 0-3.5A
- Output frequency range: 1hz-100khz
- Duty cycle adjustment:1%-100%
- Adjustable voltage: 1.25V-11.5V
