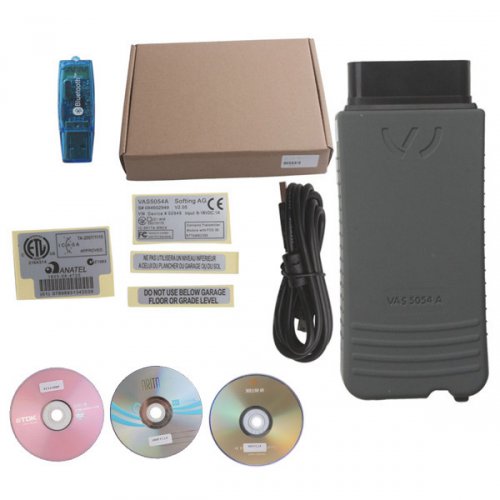

VAS 5054 PLUS (ODIS V2.02/Bluetooth Support/UDS Protocol with OKI Chip)
The VAS 5054 PLUS is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems
from other manufacturers. The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054 PLUS. The range of the wireless Bluetooth connection is 2 to 5
meters depending on the environment and the type of Bluetooth adapter used on the PC. The Serial Port Profile (SPP) is
used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
The vehicle protocols are handled directly in the VAS 5054 PLUS.
This ensures fast response times and reliable real-time behavior independently of the PC operating system.
Every time a connection is established, the VAS 5054 PLUS software is identified with the version installed on the application
PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the
application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054 PLUS via Bluetooth or USB.
1.Access Via Bluetooth: After a connection to the VAS 5054 PLUS has been set up, the Bluetooth software provides a virtual
serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS
5054A.You need to specify this port when you install the diagnostic application
2.Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects
the VAS 5054 PLUS through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic
application. Setup of the VAS 5054 PLUS is then complete and the device is ready for use by the diagnostic application.
The Following Vehicle Bus Systems are Supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)
UDS Protocol
PWM Protocol
1. With OKI Chip
2. Support UDS Protocol
3. Multilanguages:
4. Supported Car Models: VW, AUDI, SKODA, SEAT, Bentley and Lamborghini
5. Bluetooth Version (Bluetooth Connection Password: 082145725)ODIS V2.02 Computer Windows System Requirements
Windows XP Professional (Service Pack 2 or 3)
