Description

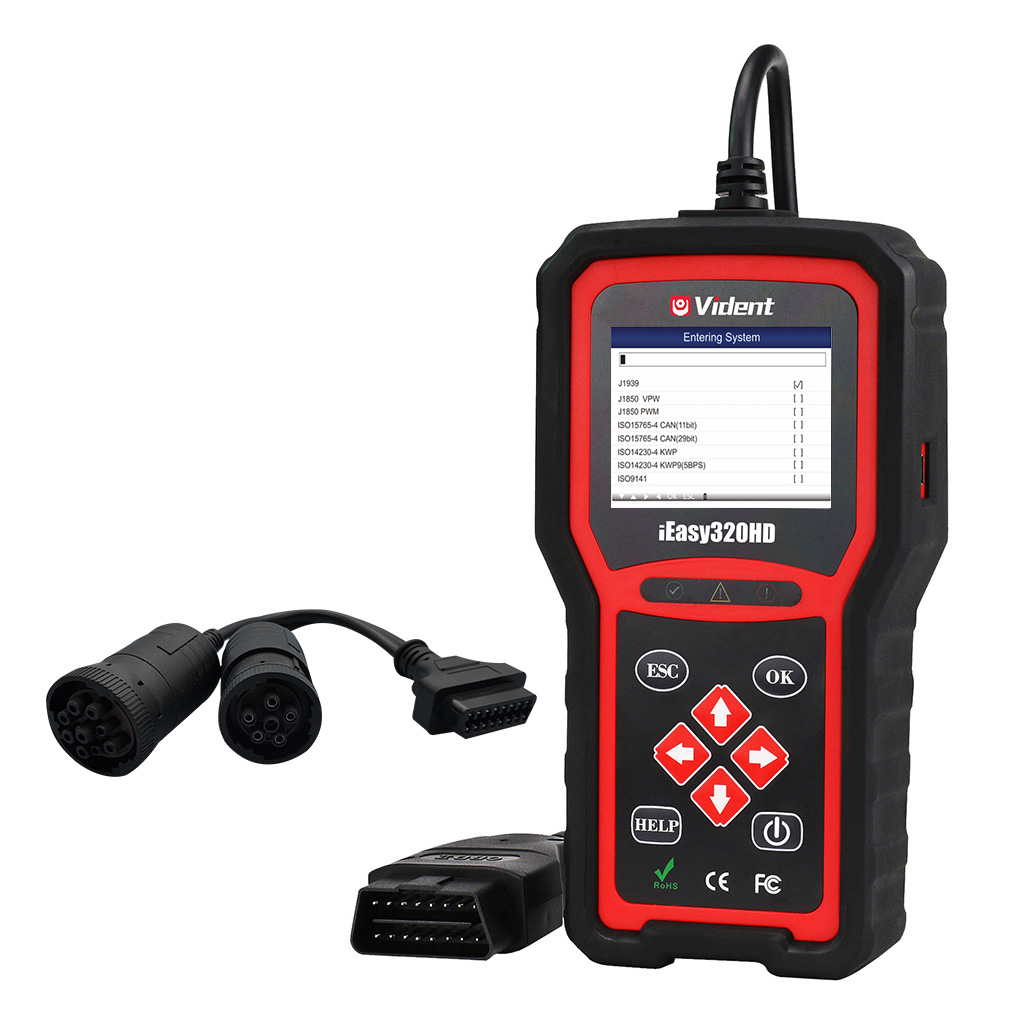

iEasy320HD Diesel & Petrol OBDII/EOBD CAN Code Reader
iEasy320HD is specially developed for heavy-duty vehicles(Diesel) and passenger cars(Gasoline or Petrol), which enables users to read DTCs, clear DTCs and view the datastream with a live color graphing. It covers a wide range of vehicles since it offers multiple data bus protocols, such as J1587, J1939, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4).
FEATURE AND BENEFITS
- J1939, J1587/1708 vehicle communication protocols
- J1850VPW, J1850PWM, ISO9141, KWP2000 (ISO14230-4) and CAN (Control Area Network ISO15)
- 6PIN, 9PIN, 16PIN DLC
- Support all the 10 OBDII test modes, enhanced mode 6 functions; Non-continuously Monitored System test results
- Multi-system; E.g: Engine, Transmission, Brake, Fuel, Body control, Chassis etc
- I/M Readiness: Red-Yellow-Green LEDs and built-in speaker indication emission monitoring status. They can also help catch intermittent problems or confirm repairs during a drive cycle.
- Live on-screen graph data
- Retrieve protocol, VIN, Cal ID and CVN identifiers from ECU (dependent on vehicle support)
- Multilingual menu options: English, French, Spanish, German and Russian
SPECIFICATIONS
| Operating Temperature: 0 to 60°C (32 to 140°F) | |||
| Storage Temperature: -20 to 70°C (-4 to 158°F) | |||
| Power: 8 to 18 V provided via vehicle | |||
| Supported Protocols: J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4) | |||
| Unit Dimensions : 190mm(7.5”)*100mm(3.9”)*35mm(1.4”) | |||
| Weight: 380g | |||
| QTY/CTN: 44SETS | |||
| Weight/CTN: 23.5KG | |||
| CTN MEASUREMENT: 52*52*38cm |
Packing List
- iEasy320HD Diesel&Petrol OBDII/EOBD+CAN Code Reader
- User Manual
- USB PC cable for updating software
