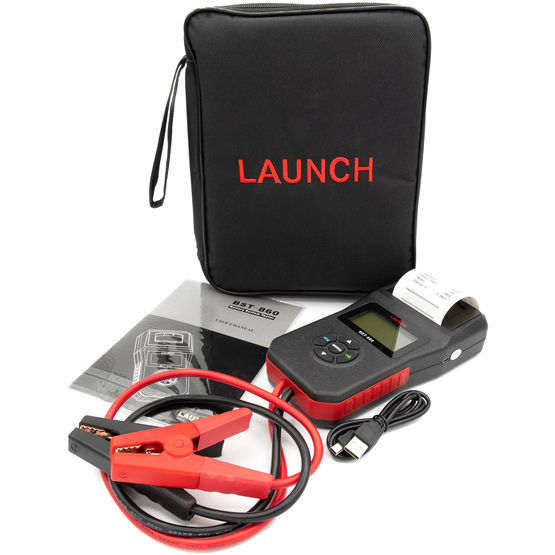

Launch BST-860 Battery System Tester


Add to Wishlist
Add to Wishlist


Types of Tests

Ripple Detection, Battery Test, Electric Current Test, Starter Test, Charging System Test, Voltage Test

BST-860 Features

Built-in thermal Printer

The USB port can export service records

A variety of applicable vehicle types, battery types and calibration systems

Large screen with backlight and user-friendly interface

The potential problem of vehicles can be detected in advance

The battery and circuit system can be detect simultaneously

The battery test results are quick and accurate (within 3 Sec.)

No heating, no discharge, no spark, no operating risks

Support Automatic temperature compensation function

Available to the batch inspection of battery by testing continuously and repeatedly

Support multiple languages menu

Results of the battery test: ‘Good’ or ‘To replace’

Applicable Vehicle

Cars, motorcycles, lawn mowers and other gardening machines, Group 31, commercial vehicles 4D/8D

Applicable Battery Types

6V, 12 V and 24V batteries (Lead-acid battery, gel battery and AGM battery)

Optional Accessories

Storage case

Thermal paper (sold in most office supply stores)


European Configuration A: English, German, Italian, French, Polish, Russian

European Configuration B: Netherlands, Sweden, Finland, Turkey, Denmark, Norway

American Configuration: English, Spanish, Portuguese, French

Asia Configuration A: English, Traditional Chinese, Simplified Chinese

Asia Configuration B: English, Japanese, Korean

Test Range

CCA 100~2000
DIN 100~1400
EN  100~2000
IEC 100~1400
SAE  100~2000
JIS   26A17~245H52
CA  100~2000
MCA 100~2000
BCI  100~2000
GB 30Ah~200Ah

Technical Data

Display 4-line graphic LCD display with backlight
Working Temperature -18~50℃
Dimension 188x95x41mm
Case Material ABS acid-proof plastic, industrial case design, suitable for repair workshops
Test Cable 80 mm standard cable
Weight 450g
