Launch TLT440W Four Post Lift

7,100,000.00

Add to Wishlist
Add to Wishlist

Description

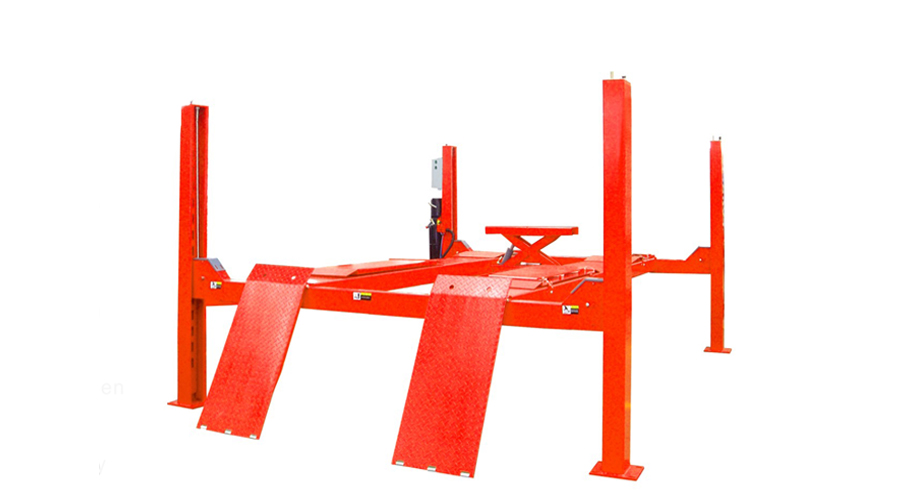

TLT440W Wheel Alignment 4-Post Lift

Features

● Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm.

● Front wheel turn plate’s position is adjustable and rear wheel sliding plate is extended for various vehicle type.

● Deployed with rolling jack with small scissor hydraulic lifting and lowering. can be moved back and forth and easy to adjustment tire.

● Positioning level’s accuracy is adjustable, distance between platforms is adjustable, wheel base in certain scope is adjustable .

● Driven by hydraulic cylinder , full-scope mechanical safety locking by locking latch ,manual lowering.

● Cable rupture safety system ,effectively protects vehicle from overturn.

● Four connected steel cables force synchronized movement of the lift, effectively prevent vehicles from sloping.

● Cylinder travel limit device effectively protects cylinder and extends its lifespan.

● Electric controlled lifting and lowering type is optional.

● The installation position of turntable and side slip plate can be moved backwards and forwards .

● Applicable for vehicles with different wheel base.

● CE certificated.



TLT440W Parameters

● Rated load:4000kg

● Lifting height:1850mm

● Initial height:220mm

● Lifting time:≤60s

● Lowering time:≥20s ≤40s

● Max drive-on width:3045mm

● Platform length:4240mm

● Platform width:500mm

● Overall width:3445mm

● Overall height:2172mm

● Motor power:2.2kW

● Motor voltage: Single Phase 220V

Secondary lift
● Platform length: 915-1450mm
● Platform width: 215mm
● Lifting time: ≤ 45s
● Lowering time: ≥10s ≤20s
● Lifting load: 2000kg
● Lifting height: 450mm
● Working noise:≤ 75dB(A)
● Working oil pressure: 16MPa
●Working air pressure: 0.5-0.7 MPa
